Huis > producten > Flatbed Cutter Plotter > 2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing

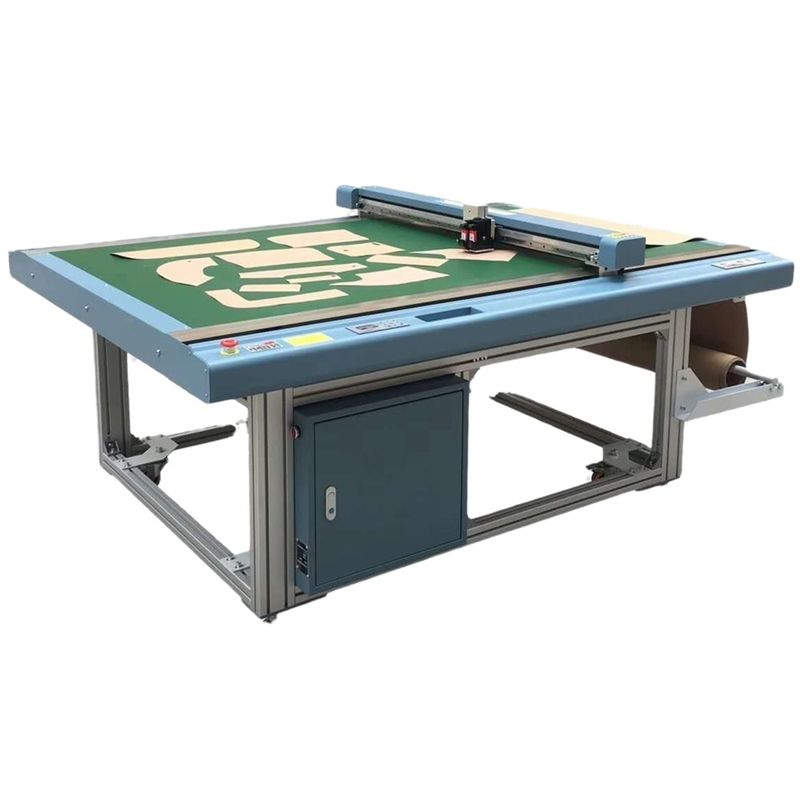

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing

Productgegevens

Plaats van herkomst: Hubei, China

Merknaam: KAEMI or GM

Betalings- en verzendvoorwaarden

Prijs: $3,830.00/sets 1-2 sets

Krijg Beste Prijs
Productgegevens
Markeren:
Type:
Inkjetprinter
Afmeting van de afdruk:
1500*1200 mm
Toepasselijke sectoren:
Hotels, kledingwinkels, fabrieken, reparatieshuizen voor machines, huishoudelijk gebruik, detailhand
Voorwaarde:
Nieuw
Type plaat:
Flatbedprinter
Gebruik:
Papierprinter, etikettenprinter, kaartprinter, rekeningenprinter, kledingprinter, patroon- en sjablo
Automatische rangschikking:
Automatisch
Kleur & Pagina:
enkelkleurig
Spanning:
AC 220V/110V±10%, 50Hz/3,5KW
Afmetingen ((L*W*H):
2000*1770*1100 mm
Gewicht:
456 kg
Garantie:
1 jaar
Type inkt:
HP45 Inkbox Universele type
Belangrijkste verkooppunten:
Multifunctioneel
Tipe in de handel brengen:
Nieuw product 2020
Verslag van de test van de machine:
Voorziening
Video-uitgaande inspectie:
Voorziening
Garantie voor kerncomponenten:
2 jaar
Kerncomponenten:
Motor, motor, stuurprogramma's en moederbord
Naam van het product:
Dual Knife Flatbed Paper Cutter Full Cut Half Cut Paper Cutter
Machinaal materiaal:
Alle rekenborden van aluminium
Snijmachine frame en hoes:
Blauw frame + zilveren hoes
Snijmaterialen:
Witboek, Kraft, plastic karton, vezelkarton, enz.
Snijgereedschappen:
HP45 Ink Box, Tungsten Steel Blade
Omvang van het snijden:
1500*1200 mm
Snijdikte:
≤3mm
Snij snelheid:
1200 mm/s Max.
Afmeting van de snijmachine:
2000*1770*1100 mm
Type:
Inkjetprinter
Afmeting van de afdruk:
1500*1200 mm
Toepasselijke sectoren:
Hotels, kledingwinkels, fabrieken, reparatieshuizen voor machines, huishoudelijk gebruik, detailhand
Voorwaarde:
Nieuw
Type plaat:
Flatbedprinter
Gebruik:
Papierprinter, etikettenprinter, kaartprinter, rekeningenprinter, kledingprinter, patroon- en sjablo
Automatische rangschikking:
Automatisch
Kleur & Pagina:
enkelkleurig
Spanning:
AC 220V/110V±10%, 50Hz/3,5KW
Afmetingen ((L*W*H):
2000*1770*1100 mm
Gewicht:
456 kg
Garantie:
1 jaar
Type inkt:
HP45 Inkbox Universele type
Belangrijkste verkooppunten:
Multifunctioneel
Tipe in de handel brengen:
Nieuw product 2020
Verslag van de test van de machine:
Voorziening
Video-uitgaande inspectie:
Voorziening
Garantie voor kerncomponenten:
2 jaar
Kerncomponenten:
Motor, motor, stuurprogramma's en moederbord
Naam van het product:
Dual Knife Flatbed Paper Cutter Full Cut Half Cut Paper Cutter
Machinaal materiaal:
Alle rekenborden van aluminium
Snijmachine frame en hoes:
Blauw frame + zilveren hoes
Snijmaterialen:
Witboek, Kraft, plastic karton, vezelkarton, enz.
Snijgereedschappen:
HP45 Ink Box, Tungsten Steel Blade
Omvang van het snijden:
1500*1200 mm
Snijdikte:
≤3mm
Snij snelheid:
1200 mm/s Max.
Afmeting van de snijmachine:
2000*1770*1100 mm
Productomschrijving

Two Cutting Knives Dual Knife Flatbed Paper Cutter Full Cut Half Cut Paper Cutter

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 0

Product Description

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 1Main Features:
1. Unique Inkjet and Cutting Double Track Tracking System
2. Unique Paper Card Abnormal Monitoring System
3. Cutting Starting Points and Cutting Sequence Display System
4. Automatic Paging System
5. Fault Detection System for Whole Machine

Model GM-1209P5 GM-1509P5 GM-1510P5   GM-1512P5
Cutting Window(Fabric Scope) 1200*900mm 1500*900mm 1500*1000mm 1500*1200mm
Overall Dimension(mm) 1700*1570*1100 2000*1570*1100 2000*1570*1100 2000*1770*1100
Max Speed 1200mm/s 1200mm/s 1200mm/s 1200mm/s
Materials Fasten Vacuum Adsorption
Maximum Cutting Thickness 2mm
Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc
Printing Speed 60m2/h
Plot/Cut Tool HP45 Ink Box,Tungsten Steel Blade
Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats HPGL(Compatible with Domestic and Interntional CAD Online)
Control Panel 9 Keys and LED Display(Chinese and English Switch)
Motor/Driver High Performance 3 Phrase Step-motor
Supply Voltage AC 220V/110V±10%, 50Hz
Working Environment Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH
Paper Thickness 150g-500g/m2
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc
Product Show

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 22000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 3   2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 4



2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 52000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 6

Packaging & Shipping

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 7

Related Products
Company Information

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 10

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 11

FAQ

2000*1770*1100mm Dual Knife Flatbed Paper Cutter for Garment Cutting Manufacturing 121. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
